Generally, the outlet pressure of PSA nitrogen generator is ≤10barg. If the capacity of nitrogen generator is excessive, or if it is filled at night by peak and valley electricity, it is more economical. It needs to store nitrogen for later use. At this time, nitrogen is generally used. The compressor is pressurized to a pressure of 200-400 barg and filled into a high-pressure bottle. Generally, a high-pressure bottle can be filled with about 10 cubic meters of nitrogen.

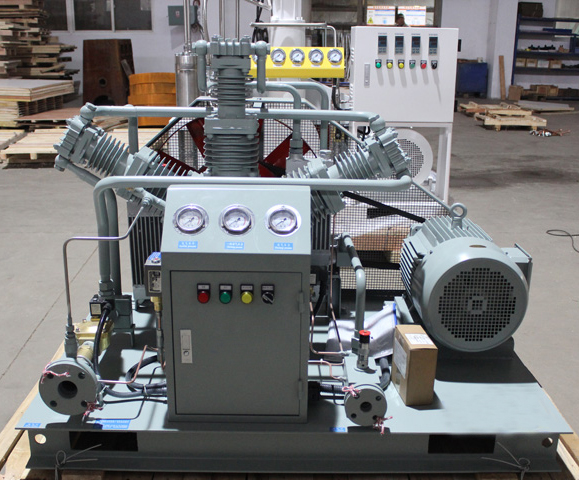

nitrogen gas air compressor with air-cooling and water-cooling cooling modes, single-acting and double-acting structure, vertical and angle type, medium and high pressure, wind brand series Oil-free lubricating nitrogen compressor with excellent performance, stable operation, high efficiency and energy saving, long service life.
Our nitrogen compressors and nitrogen boosters are used in laser cutting, tire manufacturing, cylinder filling, Nitrogen generator, chemical, electronics, metallurgy, food, machinery, food and beverage, pharmaceutical, fermentation, sugar, concentrated crystallization, wastewater treatment, seawater Desalination, landfill infiltration and other industries are widely used, and many factories will install industrial nitrogen equipment.
|
Model |
medium |
suction |
Discharge |
Motor.KW |
Flow rate |
Voltage |
Cooling way |
|
pressure mpa |
Pressure mpa |
Nm3/h |
|||||
|
1.5/6-30 |
Nitrogen |
0.6 |
3 |
1.1 |
1.5 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
4/7-40 |
Nitrogen |
0.7 |
4 |
2.2 |
4 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
5/4-50 |
Nitrogen |
0.7 |
5 |
1.5 |
5 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
6/6-25 |
Nitrogen |
0.6 |
2.5 |
2.2 |
6 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
10/5-25 |
Nitrogen |
0.5 |
2.5 |
1.5 |
10 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
36/5-30 |
Nitrogen |
0.5 |
3 |
7.5 |
36 |
220V/380V/415V/440V 50/60HZ |
air cooling |
The following data is for the high flow with high pressure ,the voltage can be customized as your requirements:
|
Model |
Medium |
suction pressure (Mpa) |
Discharge pressure (Mpa)
|
Motor.KW |
Flow rate Nm3/hr |
Voltage |
air cooling |
|
100-6-30 |
Nitrogen |
0.6 |
3 |
15 |
100 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
100/5-40 |
Nitrogen |
0.5 |
4 |
18.5 |
100 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
100/5-45 |
Nitrogen |
0.5 |
4.5 |
18.5 |
100 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
150/6-30 |
Nitrogen |
0.6 |
3 |
18.5 |
150 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
190/10-40 |
Nitrogen |
1 |
2.5 |
18.5 |
190 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
200/6-30 |
Nitrogen |
0.6 |
3 |
22 |
200 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
220/5-16 |
Nitrogen |
0.5 |
1.6 |
18.5 |
220 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
220/5-16 |
Nitrogen |
0.5 |
1.6 |
18.5 |
220 |
220V/380V/415V/440V 50/60HZ |
air cooling |
|
282/5-16 |
Nitrogen |
0.5 |
1.6 |
22 |
282 |
220V/380V/415V/440V 50/60HZ |
air cooling |
