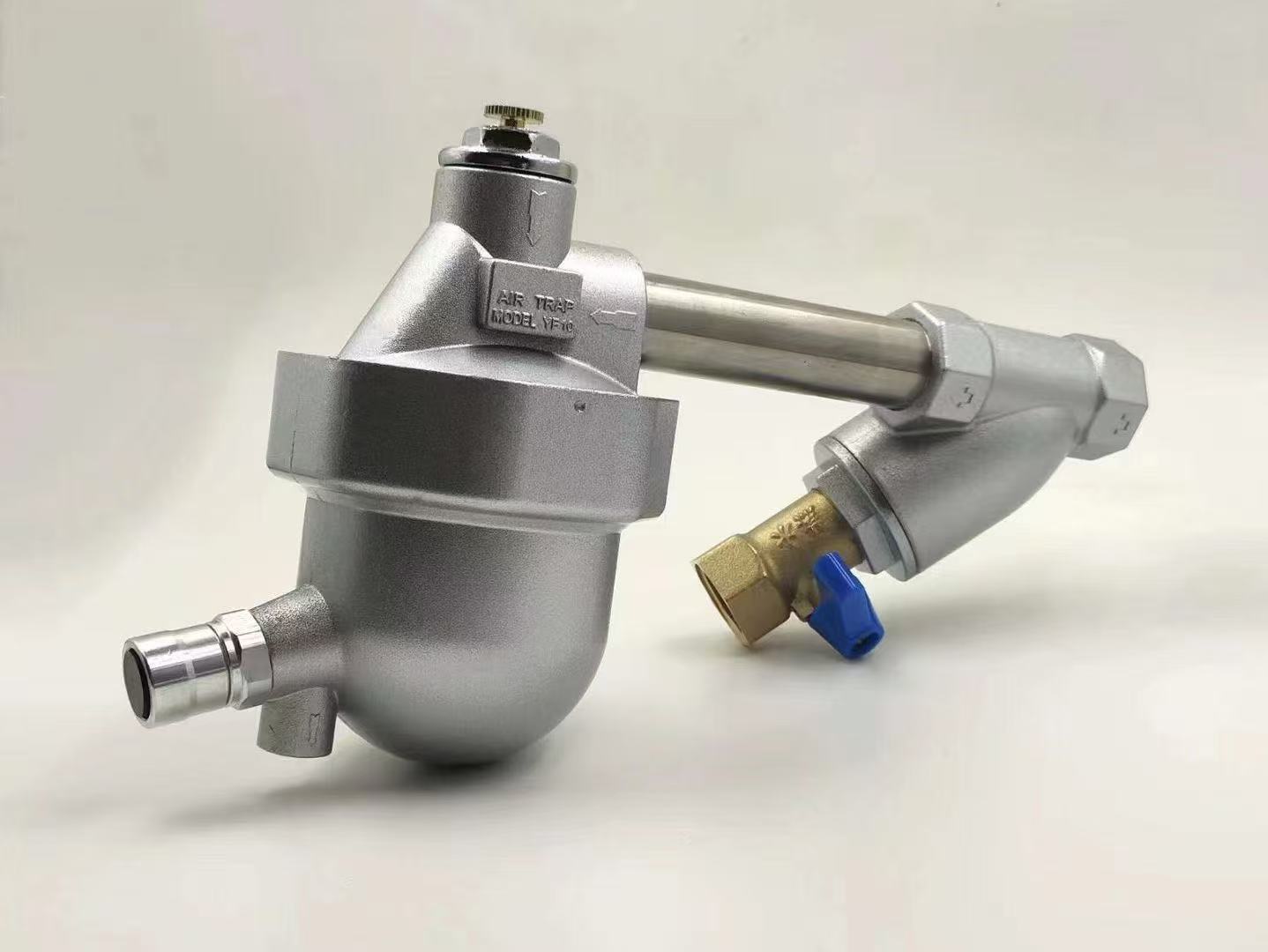

Pneumatic Auto Automatic Drain Valve Mechanical Drainer Solenoid Water Drain Trap

Feature:

1.Oxidation Treatment
Aluminum Surface is polished and hard anodized.

2.Environmental Safety
Engery saving and environmental protection with big low rate,safety and precision

3.Good Sealing Performance
Can work at the low pressure,smartness for on and off,good seal performance

Classical Design
Classical design,durable ai control design

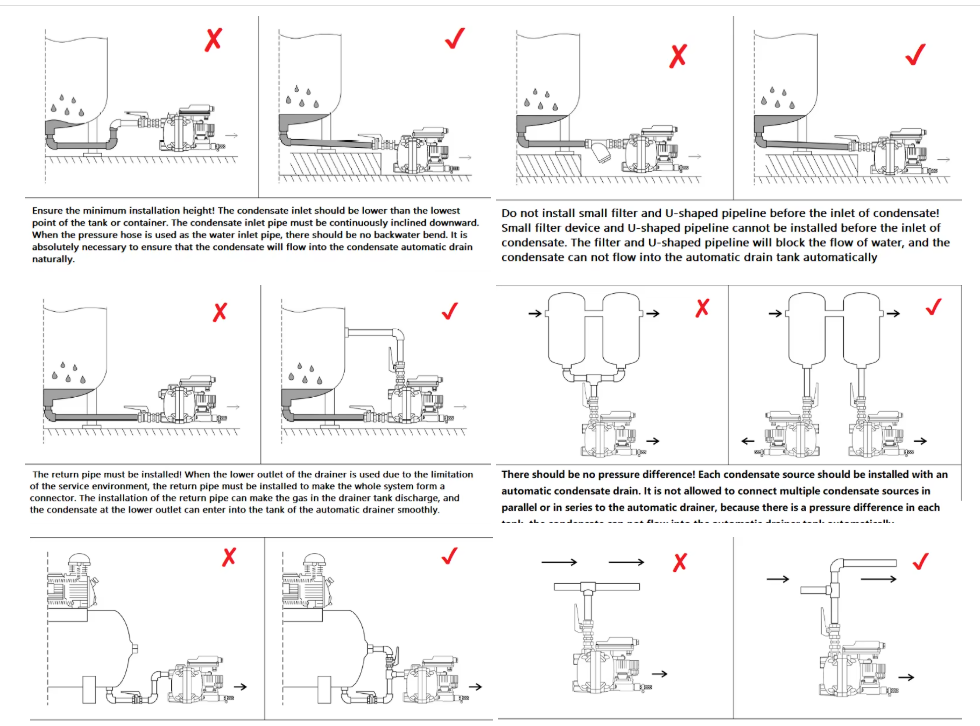

Installation instructions.
1. The water inlet pipe ① should be continuously tilted downward > 1% to allow the condensate to flow into the water storage tank.
2. The minimum diameter of the input pipe ② and the connector ④ is 1/2" (inner diameter > 15mm). Large pipes should be selected as much as possible to reduce resistance.
3. Small filters and U-shaped pipes ③ cannot be installed before the water inlet, which will affect the self-flow performance of the condensate.
4. Only large-diameter ball valves or gate valves or butterfly valves ④ can be used at the inlet, and sufficient opening should be ensured.
5. The minimum working pressure of the water storage tank ⑤ is 0.8bar or 1.6bar (see the label for details).
6. The drainage pressure hose ⑥ should be selected as much as possible to facilitate installation.
7. The minimum pressure increases by 0.1bar for every 1m rise of the drainage pipe. ⑦, the rise section at the output end does not exceed 5m!
8. The minimum diameter of the drainage head ⑧ is 1", and 1% downward tilt can reduce drainage resistance.
9. Spare nozzle ⑨ can be used for vertical installation or large-diameter pipes, and can also be used as a return pipe.
10. Drain port ⑩ can be installed with a ball valve as a manual sewage discharge or as a heater installation port.

Note:
When condensed water automatically flows into the water storage tank or backflows, various shapes of PET plastic containers and bottles are produced. A return pipe must be installed! If the water inlet pipe cannot be set with a sufficient inclination, a return pipe must be installed. Compared with the method described in the previous point 3, this solution is slightly worse, and the method described in the previous point 3 should be selected as much as possible.
